Ball bearings are the essential mechanical components for smooth and effective rotating motion in a variety of applications. They consist of an outer ring, an inner ring and a series of rolling balls.
Bearing 6204 Specifications
1. Bearing Type : Deep Groove Ball Bearing
2.Bearing Number: 6204
3.Dimensions:
·Bore Diameter (d):20mm.Outer Diameter (D): 47mm Width (B):14mm
4. Basic Load Ratings:
·Dynamic Basic Load Rating (Cr): 15.6 kN·Static Basic Load Rating (Cor): 9.3 kN
5. Limiting Speeds:
●Reference Speed (n1): 9000 r/min
●Limiting Speed with Lubrication (Oil):10000 r/min
●Limiting Speed with Lubrication (Grease):8000 r/min
Material : Chrome Steel

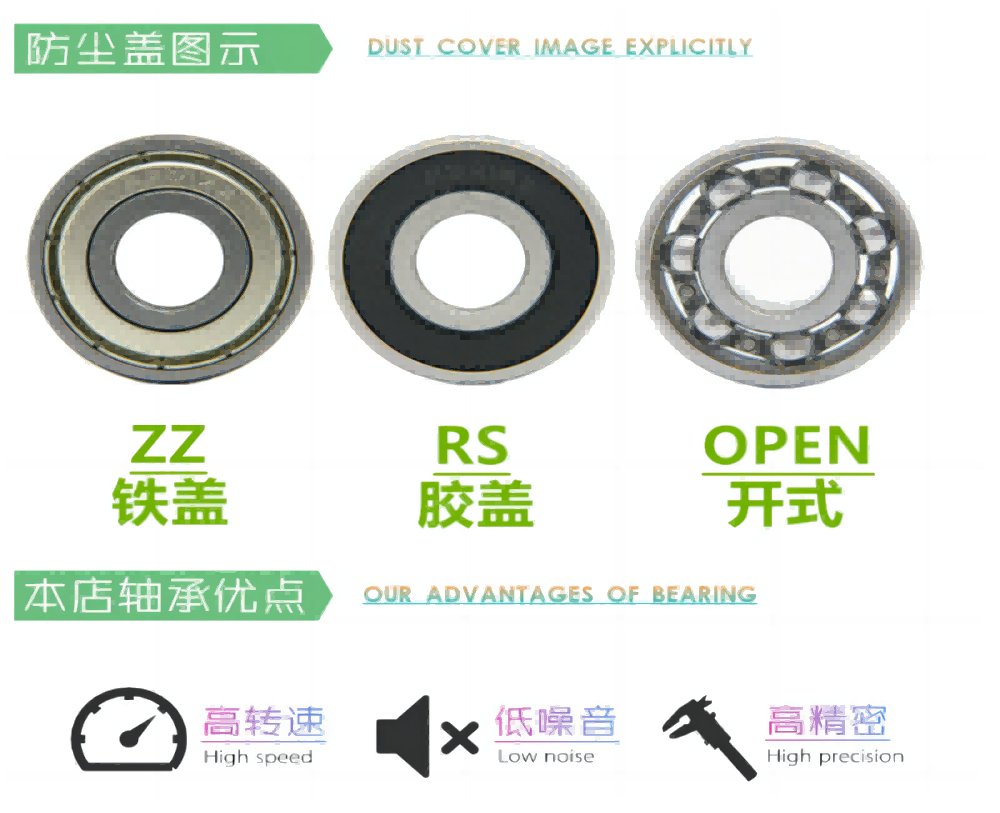

Sealing Type: Open Type and seal
Precision Rating:PO(Standard Precision) p5 p6
Clearance Group : Normal Clearance (CN)
Application : Widely used in motors, automotive transmission systems,
machinery, household appliances,medical equipment, and other fields where bearings are required for rotational movement.
| Model | BASIC | DIMENSION | KN | Limitspeed | kg | |
| d | D | B | CR | |||
| 6200 | 10 | 30 | 9 | 5.1 | 9000 | 0.032 |
| 6201 | 12 | 32 | 10 | 6.82 | 8000 | 0.035 |
| 6202 | 15 | 35 | 11 | 7.65 | 7000 | 0.045 |
| 6203 | 17 | 40 | 12 | 9.58 | 6000 | 0.064 |
| 6204 | 20 | 47 | 14 | 12.8 | 5000 | 0.103 |
| 6205 | 25 | 52 | 15 | 14 | 4000 | 0.127 |
| 6206 | 30 | 62 | 16 | 19.5 | 4000 | 0.2 |
| 6207 | 35 | 72 | 17 | 25.5 | 3800 | 0.288 |
| 6208 | 40 | 80 | 18 | 29.5 | 3500 | 0.368 |
| 6209 | 45 | 85 | 19 | 31.5 | 3200 | 0.416 |
| 6210 | 50 | 90 | 20 | 35 | 3100 | 0.463 |
| 6211 | 55 | 100 | 21 | 43.2 | 3000 | 0.603 |
| 6212 | 60 | 110 | 22 | 47.8 | 2900 | 0.789 |
| 6213 | 65 | 120 | 23 | 56 | 2500 | 0.99 |
| 6214 | 70 | 125 | 24 | 63 | 2200 | 1.05 |
